CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm

Name: CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FWDM 1X2 Fliter Module
Price: 2.10 USD
Availability: InStock

Nombre De La Marca:	Yingda
Número De Modelo:	FWDM 1X2 Fliter Module
Cuota De Producción:	100pcs
Precio:	1.1USD-4.58USD
Tiempo De Entrega:	7days
Condiciones De Pago:	T/T,Western Union,MoneyGram

Información detallada

Descripción del producto

Información detallada

Place of Origin:

china

Certificación:

ISO

reflection:

1310/1490nm

transmition:

1550nm

connector type:

SC/LC/ST/FC

fiber type:

SMF-28e

package:

blister box, 1pc/ box

Diameter:

2.0mm, 3.0mm

Network:

Wired LAN, 4g, 3G

Product Name:

FWDM splitter 1x2

Packaging Details:

1pc/box, 10pcs/master box

Supply Ability:

20000pcs per month

Resaltar:

FC Box WDM

CATV Equipment WDM

T1550nm WDM

Descripción del producto

Description

FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc. YINGDA Photonic provides filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, G/E/PON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get's "mixed".

Features

Low insertion loss

High isolation

High stability and reliability

Application

Fiber laser

Fiber amplifier

Testing equipment

The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range.
It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive optical transfer solutions etc.

Specification

Type		Rx1310/1490nm, Tx 1550nm FWDM
Transmission operating wavelength (nm)		1550±20nm
Reflection operating wavelength (nm)		1310±40nm; 1490±10nm
Isolation (dB)	Reflection port	15
	Transmission port	30
Insertion loss (dB)	Reflection port	≤0.6
Transmission port	Transmission port	≤0.8
Insertion loss flatness (dB)		≤0.2
Directivity (dB)		>50
Return loss (dB)		>50
PDL (dB)		0.15
PMD (PS)		0.15
Maximum power (mW)		300
Working temperature (℃)		-40 ~+85
Storage temperature (℃)		-40 ~+85
Fiber type		Corning single mode SMF-28e, DS fiber or Flexcore
Pigtails length(m)		1.2 or customize
Port		Reflection port, Transmission port, COM port
Package		Customize

NOTE:

This indicator only corresponds to the product without connector. The indicator is subject to change without further notice.

More products pictures:

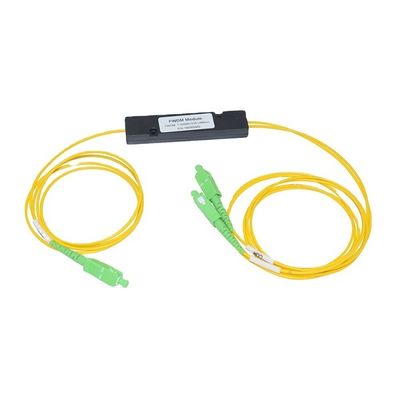

CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm 0

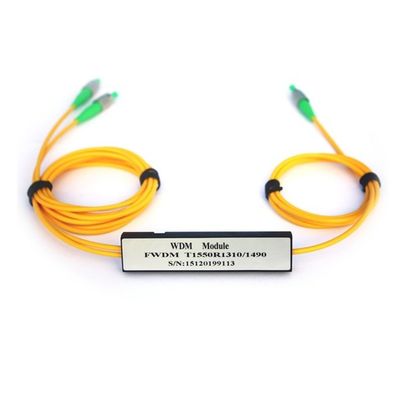

CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm 2

Packing information:

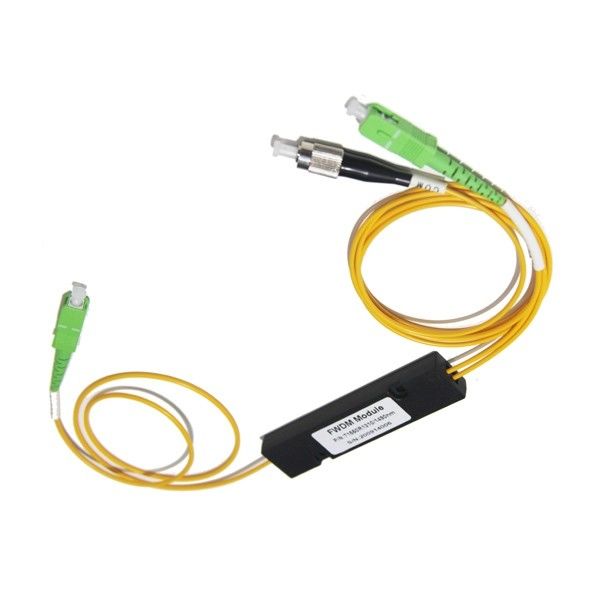

CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm 4
