Descripción del producto

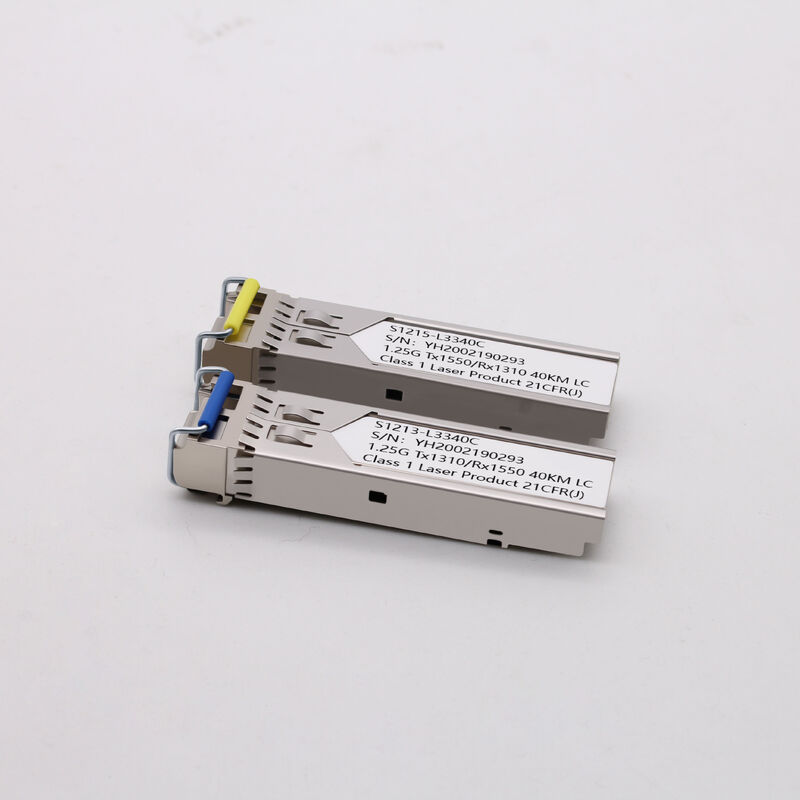

Sfp Module 1.25G 40km T1550 R1310 Sfp Transceiver Epon Sfp Optical Module Single Mode Fiber Sc Network Fttx Solution

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 10km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Sfp Module 1.25G 40km T1550 R1310 Sfp Transceiver Epon Sfp Optical Module Single Mode Fiber Sc Network Fttx Solution 0

Absolute Maximum Ratings

Table 1 - Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4.5	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	-	5	85	%

Recommended Operating Conditions

Table 2 - Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Tc	0		+70	°C
Power Supply Voltage	Vcc	3.13	3.3	3.47	V
Power Supply Current	Icc			300	mA
Data Rate			1.25		Gbps

Optical and Electrical Characteristics

(FP and PIN, 1310nm, 5km Reach) Table 3 - Optical and Electrical Characteristics

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength			λc	1260	1310	1360	nm
Spectral Width (RMS)			∆λ			9	nm
Average Output Power			Pout	-9		-3	dBm	1
Extinction Ratio			ER	9			dB
Optical Rise/Fall Time (20%~80%)			tr/tf			0.16	ns
Data Input Swing Differential			VIN	400		1800	mV	2
Input Differential Impedance			ZIN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
TX Disable	Enable			0		0.8	V
TX Fault	Fault			2.0		Vcc	V
TX Fault	Normal			0		0.8	V
Receiver
Centre Wavelength			λc	1530	1550	1570	nm
Receiver Sensitivity						-24	dBm	3
Receiver Overload				0			dBm	3
LOS De-Assert			LOSD			-28	dBm
LOS Assert			LOSA	-30			dBm
LOS Hysteresis				1		4	dB
Data Output Swing Differential			Vout	400		1800	mV	4
LOS			High	2.0		Vcc	V
LOS			Low			0.8	V

Sfp Module 1.25G 40km T1550 R1310 Sfp Transceiver Epon Sfp Optical Module Single Mode Fiber Sc Network Fttx Solution 1 Mechanical Dimensions

Sfp Module 1.25G 40km T1550 R1310 Sfp Transceiver Epon Sfp Optical Module Single Mode Fiber Sc Network Fttx Solution 2

Wide Compatibility

Compatible with various brands of equipment,such as switches/routers/servers/transceivers or other devices with SFP interfaces.

Sfp Module 1.25G 40km T1550 R1310 Sfp Transceiver Epon Sfp Optical Module Single Mode Fiber Sc Network Fttx Solution 3

Applications

GBE,SDH STM-8 and SONET OC-24 system
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

Ordering information

Part Number	Product Description
YH-S1213-L3305C	1310nm, 1.25Gbps, LC,5km, 0°C~+70°C
YH-S1213-L3305T	1310nm, 1.25Gbps, LC,5km, -40°C~+85°C,
