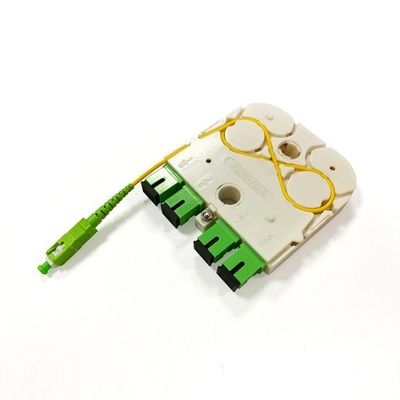

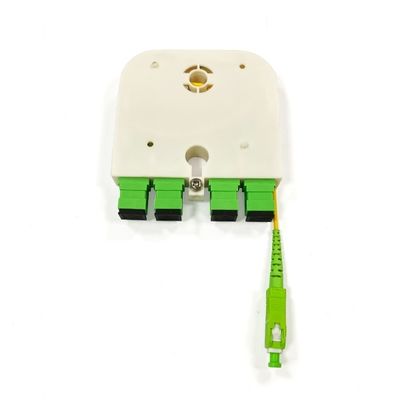

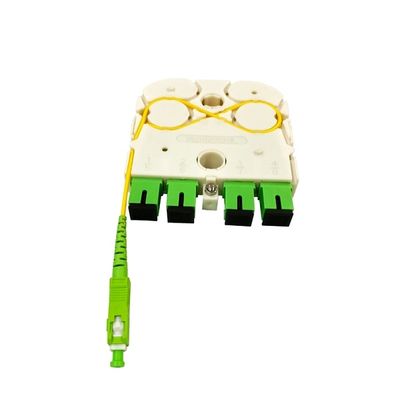

New FTTH Fiber Optic 1x4 SC APC Mini Cassette Direct Input Exclusive Design LGX PLC Splitter for Russia

Name: New FTTH Fiber Optic 1x4 SC APC Mini Cassette Direct Input Exclusive Design LGX PLC Splitter for Russia
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YDPLC-LGX-208LU
Price: 2.10 USD
Availability: InStock

Nombre De La Marca:	yingda
Número De Modelo:	YDPLC-LGX-208LU
Cuota De Producción:	1 unidad
Precio:	1.1USD-4.58USD
Tiempo De Entrega:	5 días
Condiciones De Pago:	T/T, Western Union, MoneyGram, L/C

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

ISO

Color:

Gris

Puerto de cable:

4 puertos para cable de salida

Tipo divisor:

Divisor potico de fibra 1x16 2x16

Tipo de fibra:

solo modo 9/125um

Tubo suelto:

0,9 mm de diámetro blanco

Conector:

SC LC

Detalles de empaquetado:

1 unidad/bolsa de plástico, 40 unidades/caja de cartón

Descripción del producto

1×4 Direct Input Exclusive Design LGX PLC Splitter for Russia

The LGX Optical Splitter is a high-performance fiber optic splitter specifically designed to meet the demanding requirements of the Russian market.

Engineered to operate in extreme conditions, this splitter can withstand temperatures as low as -50°C, making it ideal for use in cold winter.

A 1×8 split ratio, this splitter has a customizable shell, with stainless steel nuts for added durability and reliability.

The design allows for the direct input of patch cords, reducing construction costs and simplifying installation. Its superior performance, compact design, and adaptability make it a versatile solution for a wide range of fiber optic network applications.

Specification:

Item	Value
Type	Fiber Optic PLC Splitter
Model Number	1x4
Place of Origin	China
Brand Name	YINGDA
Use	FTTH
Warranty Time	5 years
Fiber Type	G657A1 or Customized
Wave Length	1260-1650nm
Connector Type	SC/APC
Cable Diameter	0.9mm
Insertion Loss(dB)	7.7 with connector
Fiber length	1 m 1.5 m or Customized
Fiber Color	Yellow or colors
Operating temperature	-40℃~85℃
Certification	CE/ROHS/ISO9001

Product details:

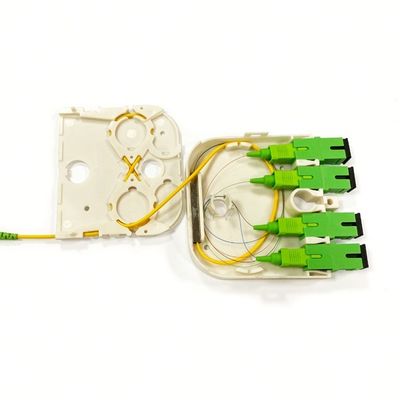

Direct patch cord Input design:

Input side with 2.0mm yellow cable, allows patch cords to be directly connected to the splitter, eliminating the need for additional components. Reduces construction and material costs, simplifying installation and maintenance.

Two models for option:

The 1X4 and 1X8 with SC/APC mini cassette PLC splitters are available. The splitter performance as below:

Splitter Performance

Specification	1×4 Splitter	1×8 Splitter
Insertion Loss (IL)	≤7.7dB (With Connector) / ≤7.5dB (Without Connector)	≤10.7dB (With Connector) / ≤10.5dB (Without Connector)
Polarization Dependent Loss (PDL)	≤0.2dB	≤0.2dB
Uniformity	≤0.8dB	≤0.8dB
Directivity	≥55dB	≥55dB
Return Loss (RL)	≥55dB	≥55dB

Application:

1· FTTx
2· Cable television (CATV)
3· Local area networks (LAN)
4· Test equipment
5· Passive optical networks(PON)

YINGDA 'S PLC Splitter production line:

New FTTH Fiber Optic 1x4 SC APC Mini Cassette Direct Input Exclusive Design LGX PLC Splitter for Russia 4

1.Advanced production and testing equipment

Professional manufacturer. 100% tested
Full compliance with IS0 9001:2008 quality managemen system
Our company has experienced professional team
Provide reliable solutions and satisfactory services
Warmly services with careful attentions
Can provide your specific inquiry within 24 hours Advanced production and testing equipment.
